On the jobs page, users (for example, with the worker role) can see the jobs that are assigned to them without having access to the task page, as well as track progress, sort and apply filters to the job list.

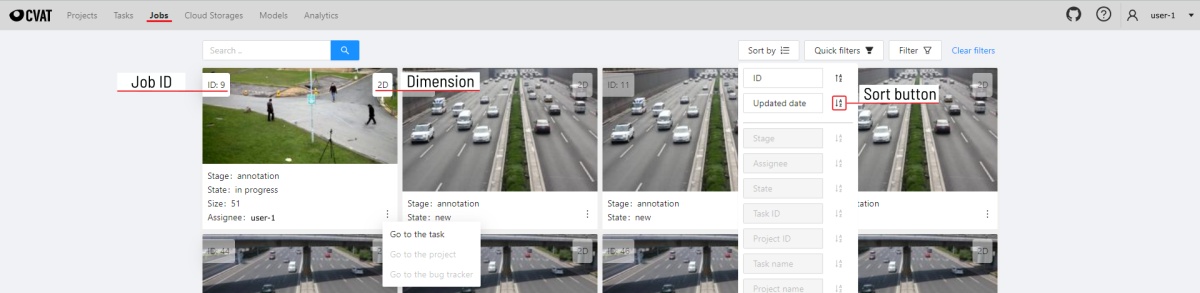

On the job page there is a list of jobs presented in the form of tiles, where each tile is one job. Each element contains:

  • job ID
  • dimension 2D or 3D
  • preview
  • stage and state
  • when hovering over an element, you can see:
    • size
    • assignee
  • menu to navigate to a task, project, or bug tracker.

To open the job in a new tab, click on the job by holding Ctrl.

In the upper left corner there is a search bar, using which you can find the job by assignee, stage, state, etc. In the upper right corner there are sorting, quick filters and filter.

Filter

Applying filter disables the quick filter.

The filter works similarly to the filters for annotation, you can create rules from properties, operators and values and group rules into groups. For more details, see the filter section. Learn more about date and time selection.

For clear all filters press Clear filters.

Supported properties for jobs list

PropertiesSupported valuesDescription
Stateall the state namesThe state of the job <br />(can be changed in the menu inside the job)
Stageall the stage namesThe stage of the job <br />(is specified by a drop-down list on the task page)
Dimension2D or 3DDepends on the data format <br />(read more in creating an annotation task)
AssigneeusernameAssignee is the user who is working on the job. <br />(is specified on task page)
Last updatedlast modified date and time (or value range)The date can be entered in the dd.MM.yyyy HH:mm format <br />or by selecting the date in the window that appears <br />when you click on the input field
IDnumber or range of job ID
Task IDnumber or range of task ID
Project IDnumber or range of project ID
Task nametask nameSet when creating a task, <br />can be changed on the (task page)
Project nameproject nameSpecified when creating a project, <br />can be changed on the (project section)
